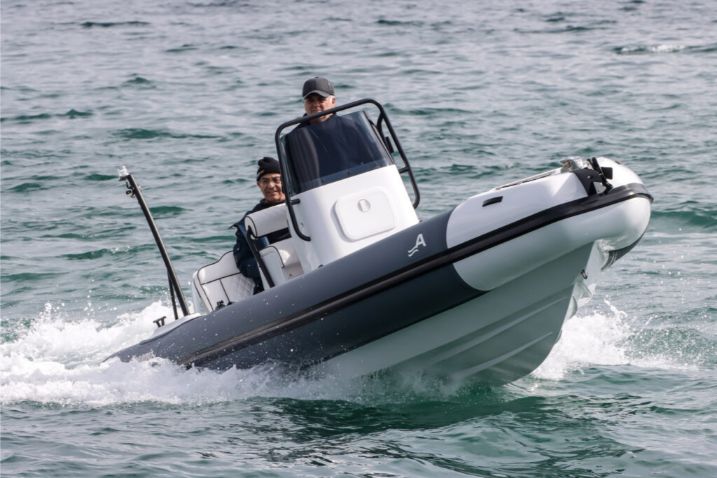

Μodel 570
Model 570
A good rider. An excellent choice for family raids or diving activities. Very good and exceptional ”cut” for its isze. Ideal for sailing clubs in ”training” version with center jockey seat and functional solutions.
Informations
TECHNICAL SPECIFICATIONS
| L.O.A (Length Overall) | 4.70 m |
| Beam | 2.20 m |
| Fuel Capacity | 56 L |
| Tube Diameter | 0.50 m |
| Tube Material | 1670 DTX ORCA PENNEL-FLIPO |
| Max HP | 70 HP |
| Number of Passengers | 7 |
| Weight | 270 kg |
| Valves | Leafield |
| Design Category | Tenders, Recreational Purposes |
BASIC GEAR
Fuel & Water Systems
- 86L fuel tank with filling cap and air release valve
- Integrated fuel float
- Bow freshwater tank with pressure pump
- Shower handset holder
🎛 Console
- Console with railing and windscreen
- Oceanic 6-position switch panel with flush buttons and fuses
- Polyurethane steering wheel
- Console storage hatches
- USB port
- Marine-grade electrical wiring
🪑 Seating
- Reclining rear sofa
- Front seat ahead of console
- Seat on front deck locker
- Full set of marine upholstery
📦 Storage
- Bow locker
- Sofa locker
- Integrated console-seat locker unit
🌊 Air Chambers
- ORCA 1670 DTX Pennel Flipo inflatable tubes
- 9mm MASIF neoprene protective strip (rubber, not PVC)
⚙ Additional Equipment
- Watertight bilge pump with float sensor
- Shock absorber on rear locker hatch
- Battery isolation switch
- Polyester bow roller with anchor pulley and cleat
- Integrated auxiliary engine mount on starboard side
- Swim ladder
OPTIONAL GEAR
- Foam teak deck coating for enhanced aesthetic and non-slip surface
- Custom gelcoat finish (hull color and coating of choice)
- 500W electric windlass with stainless steel bow roller and galvanized chain
- Seastar hydraulic steering system for precision handling
- Garmin GPS 923xsv or 1223xsv with GT51 transducer and preloaded maps
- Dual battery system ensuring reliable energy distribution
- Fusion MSRA210 NMEA stereo system with 2 high-quality speakers
- LED lighting throughout the vessel for atmosphere and efficiency
- Underwater lights for visibility and ambiance at night
- Stainless steel grab handles on the stern side rails
- INOX rollbar complete with retractable/telescopic awning
- Console cover for protection against the elements
- Hull cover to shield the body during storage
- Stainless steel awning with support struts
- ORCA Hypalon air tube (Carbon or Perlage finish) for durability and style
- Safety equipment certified for coastal cruising
- Trailer for easy transportation and launch
